Description
The installation type is simple

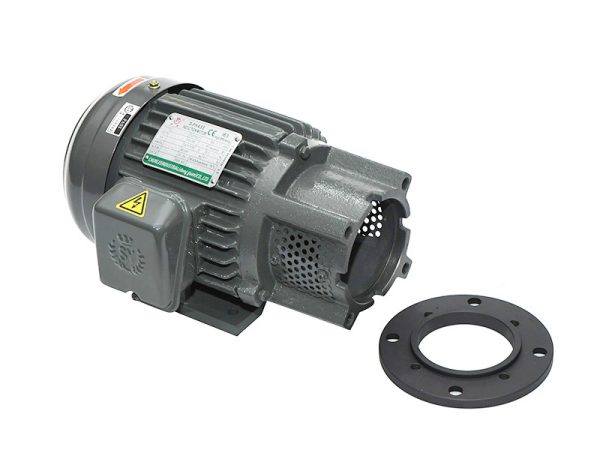

The long-nosed motor features a unique design where the front cover serves as the front bracket, eliminating the need for the traditional B35 motor’s bell housing installation process. It boasts high precision and the flexibility to adapt to various flange specifications, enabling compatibility with different oil pump models. The long-nosed design enhances heat dissipation, effectively reducing the motor’s operating temperature, which helps extend its service life and improve reliability. This design also enables the motor to operate stably in harsh environments for extended periods, reducing the frequency of maintenance and replacement;
“`With the characteristics of the coupling, it features automatic adjustment, buffering, and concentricity correction functions, thereby reducing the wear of shaft hubs.
Model: 1HP4P Three-Phase Horizontal Long Nozzle with 20L Configuration
Power: 0.75KW
Voltage: Customizable for voltages in various countries worldwide
Frequency: Rated frequency 60HZ or 50HZ

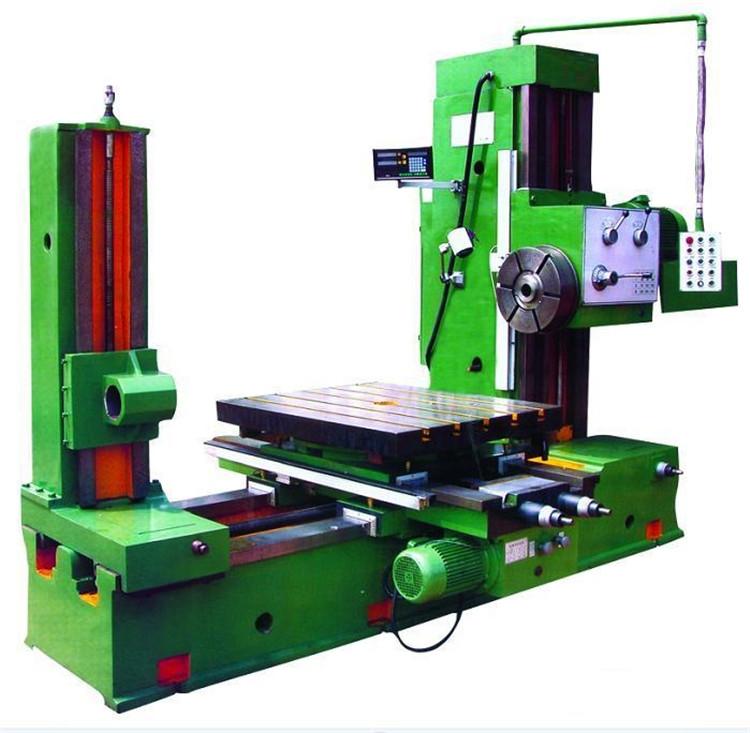

Application: Vulcanizing machines, hot pressing machines, boring and milling equipment, etc.
Advantages: Low temperature rise, low noise, long service life, stable operation

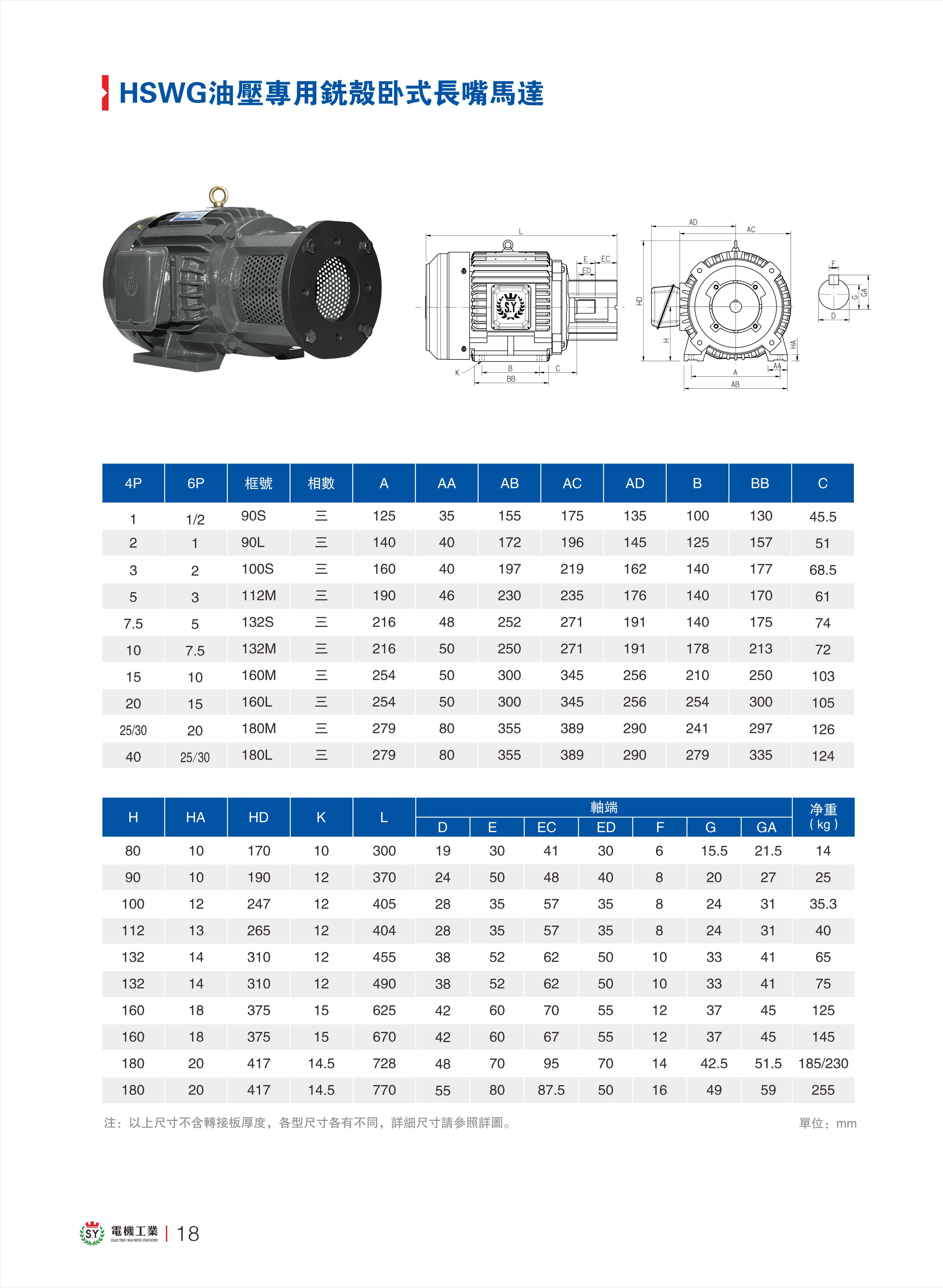

Dimensions: Shaft End Diameter: Φ19mm
Key Width: 6mm Shaft End Length: 30mm

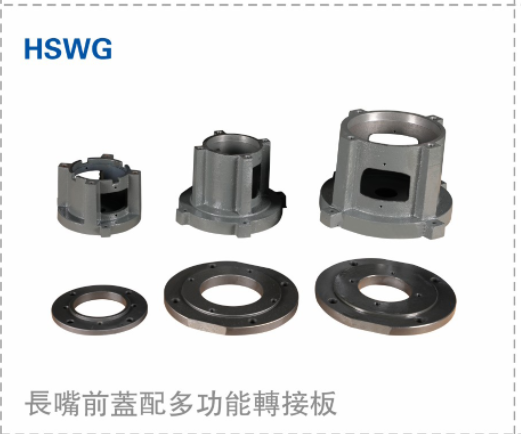

Adapter Plate Flange Diameter: Φ82.55mm
Mounting Hole Spacing: 106.3mm
