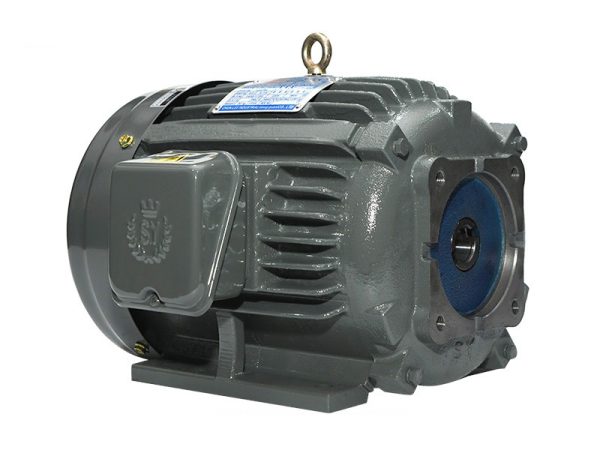

HSW Three-Phase Horizontal Milling Spindle Built-In Motor

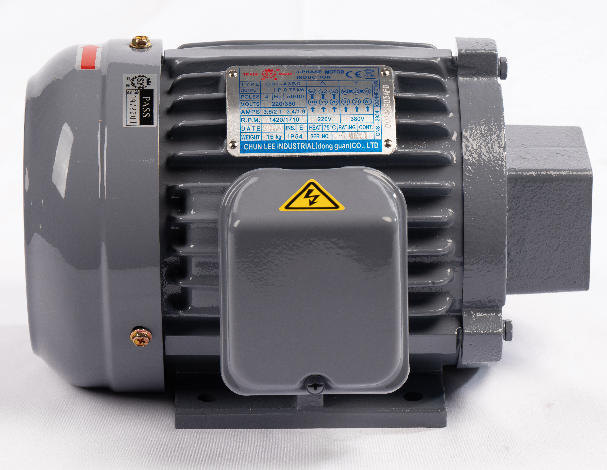

HSW Three-Phase Horizontal Milling Spindle Built-In Motor - Image 2

HSW Three-Phase Horizontal Milling Spindle Built-In Motor

Category: Tag:

Description

Technical Features
The oil pressure series offers a complete range of models and can be customized in dimensions according to customer requirements. The motor is designed with a full-load capacity exceeding standard values, delivering robust power output that ensures strong and stable performance under various heavy-duty working conditions. The compact structural design occupies minimal space, reducing costs for users and enabling its application in equipment with limited space.
Product Parameters
HSW Oil Pressure Special Milling Shell Horizontal Motor
Model: 3HP4P Three-Phase Horizontal HG1
Power: 2.25KW
Voltage: Customizable for voltages in various countries worldwide
Frequency: Rated frequency 60HZ or 50HZ
Application: Machine tools, hydraulic machinery, etc.
Advantages: Easy installation, compact structure, low overall cost

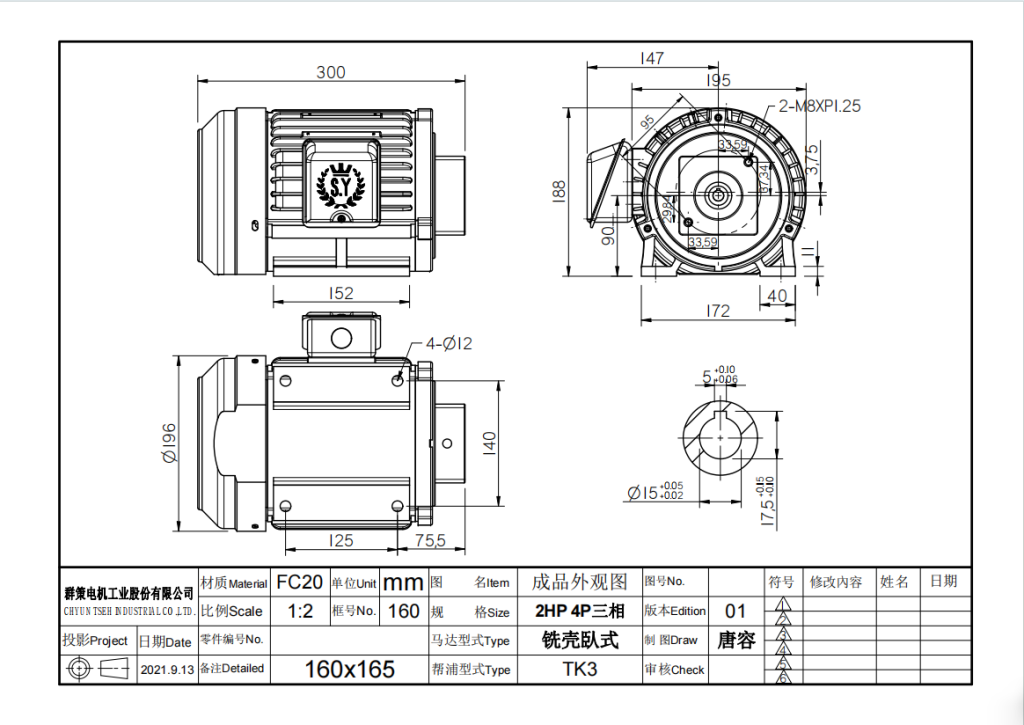

Dimensions:
Shaft Hole Inner Diameter: Φ17mm
Flange Diameter: Φ52mm Keyway Width: 5mm
Hole Spacing: 50×84mm (Lower Offset)
