HAW Hydraulic-Specific Aluminum Housing Horizontal VPM All-in-One Machine

HAW Hydraulic-Specific Aluminum Housing Horizontal VPM All-in-One Machine

Category: Tag:

Description

Technical Features
1. The motor housing is made of aluminum, featuring a uniquely designed one-piece assembly of the rear cover and the casing. The motor shaft hole and oil pump shaft are flat-shaped, ensuring high machining precision and operational stability;
2. Compact in size and lightweight, it facilitates easy transportation and installation while also reducing the load-bearing requirements of supporting structures. Aluminum exhibits excellent thermal conductivity, effectively dissipating heat generated during motor operation, thereby lowering motor temperature and enhancing operational efficiency and service life;
3. It also possesses certain corrosion resistance and wear resistance, enabling its use in harsh environments. The aluminum shell surface is treated to achieve an elegant and refined appearance.
Product Parameters

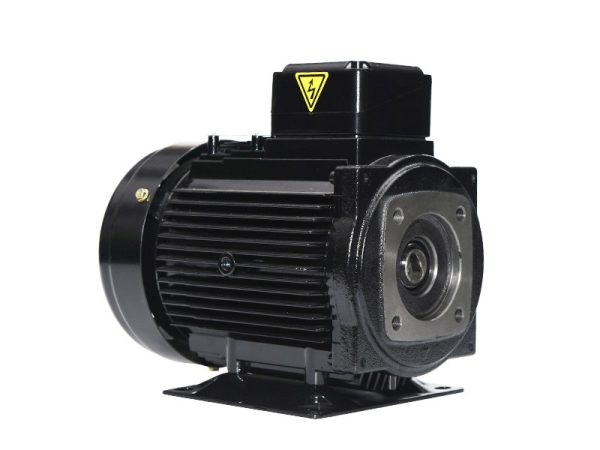

HAW Oil Pressure Special Aluminum Shell Horizontal Motor
Model: 2HP4P Three-Phase Aluminum Shell Horizontal 20L Small Flower (On-Box)
Power: 1.5KW
Voltage: Customizable for voltages in various countries worldwide
Frequency: Rated frequency 60HZ or 50HZ
Application: CNC lathes, die-casting machines, etc.
Advantages:Small in size, light in weight, high heat dissipation, and corrosion-resistant.

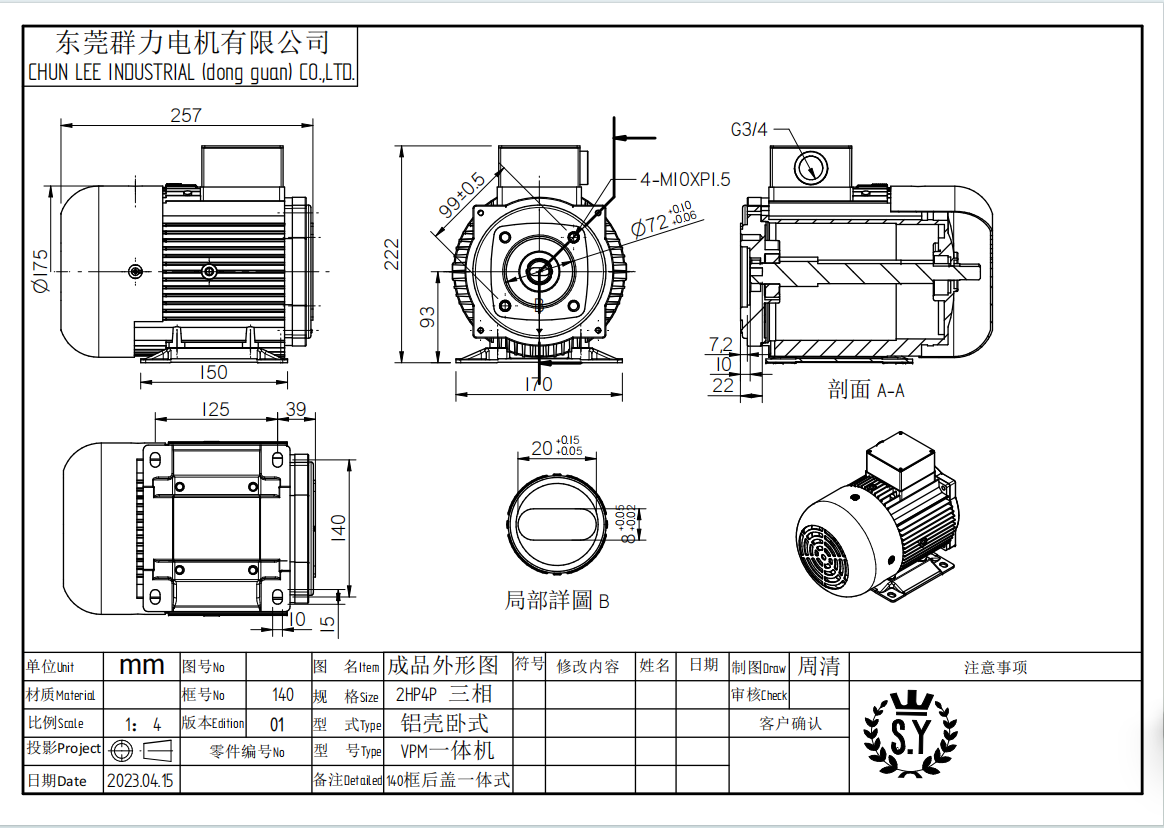

Dimensions: Shaft End Diameter: Φ20mm
Groove Width: 8mm Flange Diameter: Φ82.55mm
Mounting Hole Spacing: 106.3mm
